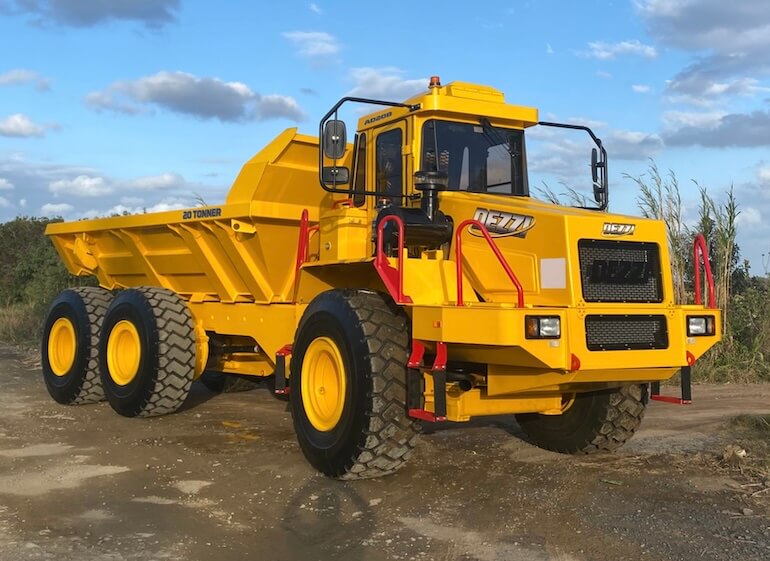

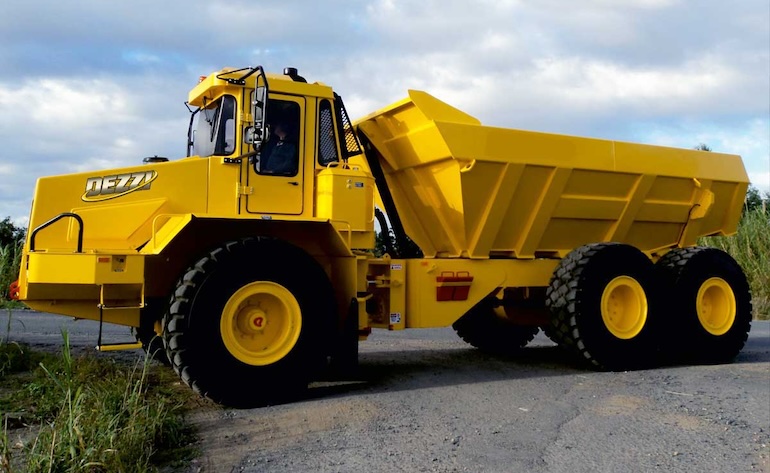

The Dezzi AD20B 6×6 Articulated Dump Truck is a robust and versatile machine designed for heavy-duty applications in construction, mining, and other demanding industries.
Built with durability and efficiency in mind, the AD20B features a powerful engine, advanced hydraulic systems, and exceptional maneuverability.
Dezzi AD20B 6X6 ADT Dimensions
| Overall Height | 11 ft (3 m) |
| Overall Length | 31 ft (9 m) |
| Overall Width | 9 ft (3 m) |
| Tire Size | Front: 20.5 R25 Rear: 20.5 R25 |
Dezzi AD20B 6X6 Dump Specs
| Capacity / Load Bin Volumes | 16,3 m3 (SAE 1:1) 14,0 m3 (SAE 2:1) 10,1m3 (Struck) |
| Tipping Times (approximate) | UP: 8.2 Seconds DOWN: 7.1 Seconds |
| Dump Angle | 66 degrees |
| Rated Payload | 55,110 lbs (25,000 kg) |
Dezzi AD20B 6X6 Engine Specs
| Engine Model | Cummins QSB 260, 6.7 L – TIER 3 |
| Gross Power | 260 hp (194kW) @ 2200RPM |
| Max Torque | 730 lbs ft (990 nm) @ 1500RPM |
Dezzi AD20B 6X6 Service Capacities
| Fuel Capacity | 66 gal (250 l) |
| COOLING SYSTEM | 50 L |
| ENGINE CRANKCASE | 21 L |
| FRONT DIFFERENTIAL | 36 L |
| FRONT PLANETARY HUBS | 8 L (per side) |
| REAR TANDEM DRIVE | 185 L |
| TRANSMISSION | 18 L |
Dezzi AD20B 6X6 ADT Transmission
| Max Speed | 26 mph (42 kph) |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
| Transmission Type | ZF 6WG210 powershift/automatic |
| Torque Converter | Single phase 3 element, lock-up clutches effective in all gears. Downshift protection |
Dezzi AD20B 6X6 Weights
| Tare | Gross | Payload | |
|---|---|---|---|
| Front Axle | 19,180 lbs (8,700 kg) | 30,150 lbs (13,674 kg) | 10,970 lbs (4,974 kg) |
| Middle Axle | 10,670 lbs (4,840 kg) | 32,740 lbs (14,853 kg) | 22,070 lbs (10,013 kg) |
| Rear Axle | 10,670 lbs (4,840 kg) | 32,740 lbs (14,853 kg) | 22,070 lbs (10,013 kg) |
| Total | 40,520 lbs (18,380 kg) | 95,630 lbs (43,380 kg) | 55,110 lbs (25,000 kg) |
Its articulated design allows for superior traction and stability on challenging terrains, making it an ideal choice for transporting heavy loads over rough and uneven surfaces. With options for both 6×6 and 6×4 configurations, the Dezzi AD20B offers flexibility to meet the specific needs of various operational environments, ensuring maximum productivity and performance.
