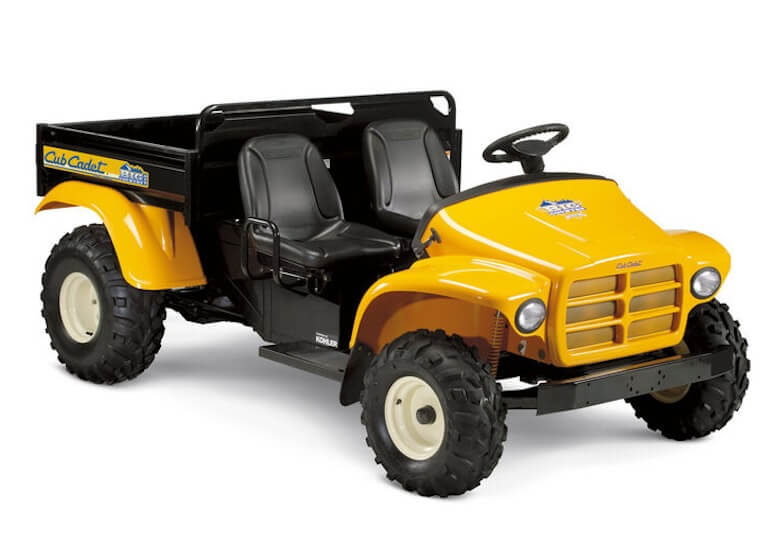

The Cub Cadet Big Country 4×2 Model 420 with its Honda 18 hp engine is engineered to offer robust performance and reliability for various utility tasks. This UTV features a durable construction suited for both work and recreational purposes.
Its Honda engine ensures consistent power delivery, making it ideal for transporting materials, navigating tough terrains, and managing day-to-day utility functions efficiently.
Cub Cadet Big Country 4×2 420 Engine Specs
| Engine Make | Honda |
| Engine Power | 18 hp |
| Maximum Torque | 31.7 lb-ft (43 Nm) @ 2500 rpm |
| Engine Displacement | 37.5 cu. in. (614 cc) |
| Engine Type | 4-Cycle Gas |
| RPM, idle (no load) | 1,250 – 1,550 |
| RPM, fast (no load) | 3,850 – 4000 |
| Cylinders | 2 |
| Valves | Overhead |
| Ignition | Transistor Controlled |
| Fuel Tank Capacity | 5.7 gal (21.6 L) |
| Low Fuel Indicator | Dash Indicator Light |
| Oil Filter (standard) | Replaceable |
| Air Cleaner | Replaceable, Dual Element Type |
| Cooling System | Air |
Cub Cadet Big Country 4×2 Electrical System (420)
| Battery | 30 A/hr, 365 cold cranking amps |
| Alternator | 20 A Regulated (12 V) |
| Headlights | 2 x 37.5 watt Halogen |
| Wiring | Automotive Style Fused Control System |
Cub Cadet 420 Big Country 4×2 Turf UTV Dimensions
| Overall Length | 110.4” (280.4 cm) |
| Overall Width | 65.0” (165.1 cm) |
| Front-Tread Centers | 50.0” (127 cm) |
| Rear-Tread Centers | 52.0” (132.1 cm) |
| Overall Height | 41” (104.1 cm) |
| Wheel Base | 84.0” (213.4 cm) |
| Ground Clearance (Under Transaxle) | 6.4” (16.3 cm) |
| Ground Clearance (Under Foot Platform) | 7.5” (19.1 cm) |
| Seating Capacity | 2 persons |
| Seat Type | High Back |
| Turn Clearance Circle | 23 ft (7 m) |
| Towing Capacity | 900 lb (454.5 kg) |
| Payload Capacity * | 1,200 lb (544.3 kg) |
| Weight (including fuel/fluids) | 1,050 lb (476.2 kg) |
* Includes 200 lb operator, 200 lb passenger, and maximum bed capacity
Cub Cadet Big Country 4×2 UTV Cargo Box Capacity
| Cargo Box Volume Capacity | 11.5 cu. ft (0.33 m3) |
| Cargo Box Weight Capacity | 800 lb (363 kg) |
| Box Material | 14-Gauge Steel |
| Attachment | Rubber Isolated |
Cub Cadet 420 Big Country 4×2 Transmission Specs
| Transmission Type | Continuously Variable (CVT) |
| Gear Selection | Forward, Neutral, Reverse |
| Max Speed | 20 mph (32.2 km/h) |
| Differential Switch | Push Button on dashboard (if equipped) |
| Drive Chain | No. 60 Industrial Roller Chain |
| Transmission Lubricant | 80-90 Weight Oil |
| Transmission Fluid Capacity | 1.45 gal (5.5 L) |
| Transaxle | Fully enclosed, Oil Bath |
| Rear Axle Housing | Welded Steel |
| Suspension | 2 Wheel Semi Independent Leaf Springs w/ Hydraulic Shock Absorbers |
| Steering | Rack & Pinion w/ Ackerman-Type Geometry |
| Brakes | Mechanical Drum |
| Parking Brake | Foot Operated |
With a focus on versatility, the Model 420 is designed to handle a wide array of jobs in agriculture, landscaping, and general outdoor activities. The UTV’s strong build and efficient design enhance its capability to perform under challenging conditions, providing users with a reliable and effective vehicle for their needs.
The Cub Cadet Big Country 4×2 Turf UTV Model 420 stands out as a dependable choice for those seeking a powerful, durable, and versatile utility vehicle.
