The Kubota RTV-X1140 is a versatile and powerful full-size utility vehicle designed to adapt to various tasks and terrains with ease. Whether you need a long-bed configuration for extra cargo capacity or a short-bed setup for transporting multiple passengers, the RTV-X1140 offers the flexibility to switch between a four-seat and two-seat arrangement, making it an ideal choice for both work and recreation.
The vehicle comes equipped with advanced features such as speed-sensitive electric power steering, 4-wheel hydraulic disc brakes, and optional electric hydraulic power lift for the cargo bed, enhancing functionality and ease of use.
Kubota RTV-X1140 UTV Engine Specs
Powered by a robust KUBOTA D1105-E4-UV, 3-cylinder, 4-cycle, diesel, OHV engine, the RTV-X1140 delivers reliable performance with a displacement of 68.5 cu.in (1123 cc) and 24.8 horsepower at 3000 rpm.
This ensures ample power for heavy-duty tasks and efficient operation in various conditions.
| Engine Model | KUBOTA D1105-E4-UV |
| Engine Type | 3-cyl, 4-cycle, diesel, OHV |
| Displacement | 68.5 cu.in (1123 cc) |
| Horsepower | 24.8 hp (18.5 kW) @ 3000 rpm |
| Cooling system | Liquid |
| Battery Ah, CCA | 670 CCA |
Kubota RTV-X1140 Transmission Specs
Equipped with the Variable Hydro Transmission (VHT-X) and Hi-Lo range gear selection, the RTV-X1140 ensures smooth and responsive power delivery.
The 4-wheel drive system with limited-slip differential provides excellent traction, stability, and control on challenging terrains.
| Max Speed | 25 mph (40 km/h) |
| Transmission | Variable hydro transmission (VHT-X) |
| Gear selection | Hi-Lo range forward, neutral, reverse |
| 4WD Front Differential | Limited-slip differential |
| 4WD Rear Differential | Foot operated differential lock |
| Steering | Hydrostatic power |
| Front / Rear Brakes | Wet-disc brakes |
| Parking Brake | Rear wheel, hand operated |
| Front Suspension | 8 in (205 mm) Independent, Dual A-arms with adjustable spring preload |
| Rear Suspension | 8 in (205 mm) Independent with coil over shock |
Kubota RTV-X1140 Dimensions

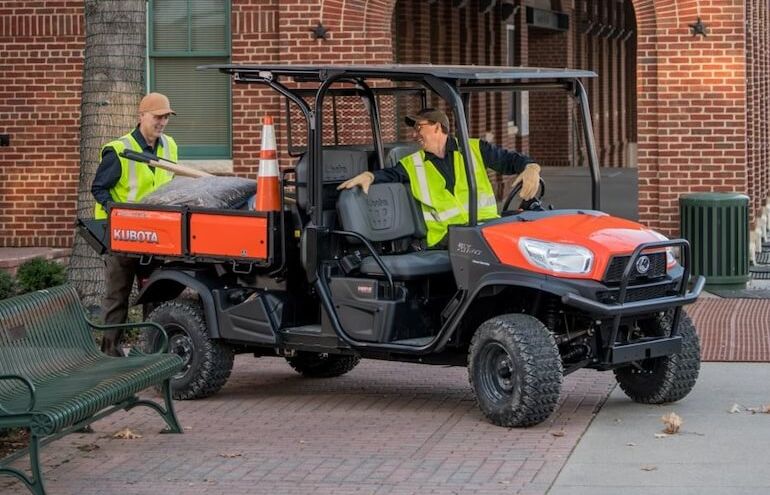

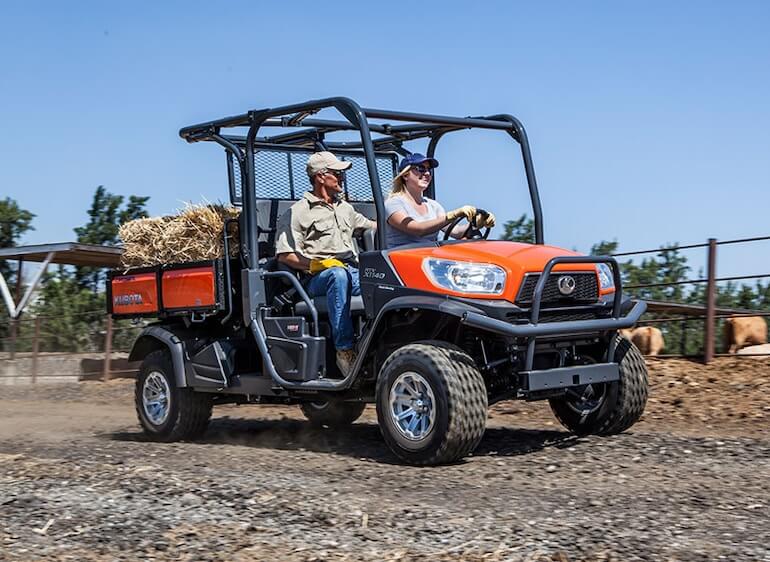

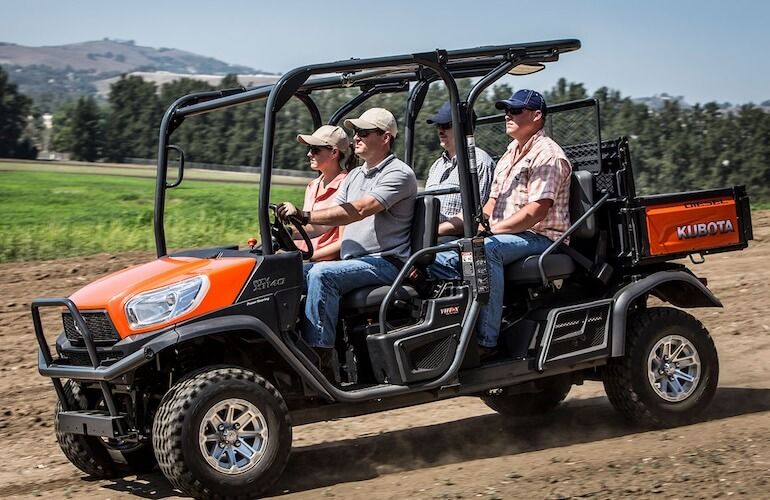

The innovative design allows you to easily transform the RTV-X1140 from a long-bed configuration with two seats to a short-bed setup with four seats.
This flexibility enables you to transport additional passengers or maximize cargo space as needed, making it a highly adaptable vehicle for various applications.
| Length | 142.1 in (3610 mm) |
| Width | 65.4 in (1660 mm) |
| Height, overall | 82.3 in (2090 mm) |
| Wheelbase | 98.2 in (2495 mm) |
| Ground Clearance (Front) | 11.2 in (285 mm) |
| Ground Clearance (Rear) | 9.4 in (240 mm) |
| Turning radius | 13.1 ft (4.0 m) |
| Weight | 2370 lb (1075 kg) |
RTV-X1140 Capacities & Cargo Bed Specs
With a generous payload capacity of 1,629 lbs (739 kg) and a towing capacity of 1,510 lbs (685 kg), the RTV-X1140 is capable of handling substantial loads.

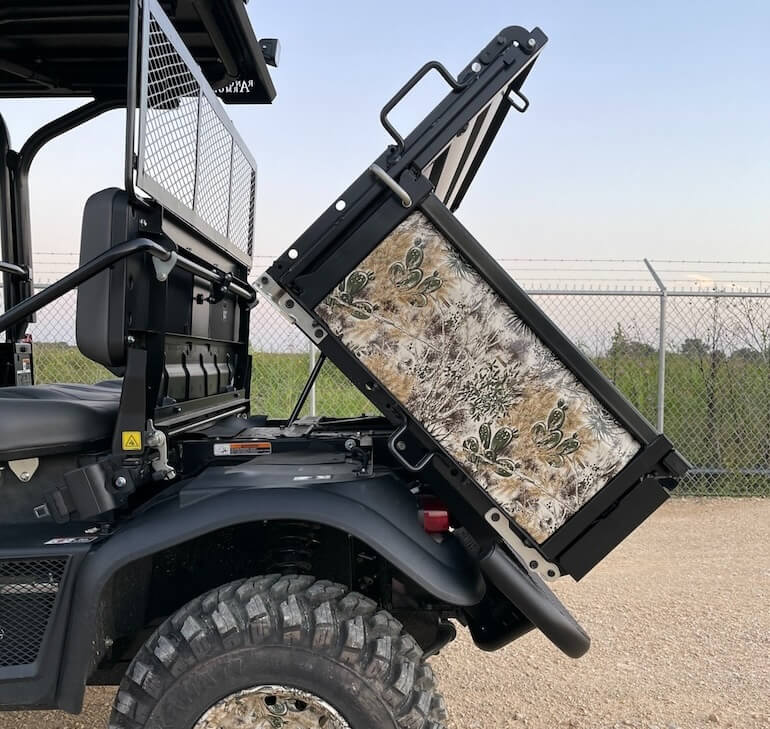

The cargo bed, made of sturdy steel, measures 40.5 x 57.5 x 11.4 inches, offering ample space for transporting various types of cargo.
| Hydraulic Bed Lift | Standart |
| Cargo Bed Material | Steel |
| Cargo Bed Width | Long: 57.7 in (1465 mm) Short: 57.7 in (1465 mm) |
| Cargo Bed Leight | Long: 51.1 in (1300 mm) Short: 26.0 in (660 mm) |
| Cargo Bed Height | 35.4 in (900 mm) |
| Cargo Bed Dept | 11.2 in (285 mm) |
| Cargo Bed Volume | Long: 19.1 cu. ft. (0.54 m3) Short: 9.9 cu. ft. (0.28 m3) |
| Cargo Bed Load | Long: 1102 lb (500 kg) Short: 661 lb (300 kg) |
| Dumping System | Hydro power lift |
| Towing capacity | 1,300 lb (590 kg) |
| Payload capacity | 1629 lb (739 kg) |
| Fuel tank capacity | 7.9 gal (30 L) |
| Tires ATV | 25 x 10-12, 6-ply |
| Tires HDWS | 25 x 10-12, 6-ply |
| Tires TURF | 25 × 10-12, 4-ply (Optional) |
| Alloy wheel (not available with Turf tire) | Opt. or Std. (Orange) / Opt. (Camo model) |
Kubota RTV-X1140 Safety & OPS
Built with a durable steel frame and reinforced components, the RTV-X1140 is engineered to withstand rigorous use in demanding environments.
It meets SAE J2194 and OSHA ROPS standards, providing maximum safety for the operator and passengers.
| Headlights | 2x 37.5 Watt halogen |
| ROPS Structure | 2.0 in (50.8 mm) steel tube |
| Seat belts | 2-point |
| Occupant Protective System Certification | SAE J2194 and OSHA 1928 ROPS |
| Sound rating at operator’s ear db(A) | 84 |
| Front guard design | Center and bumper (Orange model) / Center, bumper and lens (Camo model) |
The RTV-X1140 is designed with operator comfort in mind, featuring ergonomic controls, ample legroom, and a spacious cabin. The vehicle also includes modern conveniences such as LED headlights and a sound-rated cabin at 84 dB(A), ensuring a comfortable and quiet ride.
Whether you are managing agricultural operations, performing maintenance tasks, or enjoying outdoor adventures, the Kubota RTV-X1140 Full-Size Utility Vehicle provides the versatility, power, and comfort to meet your needs efficiently.
