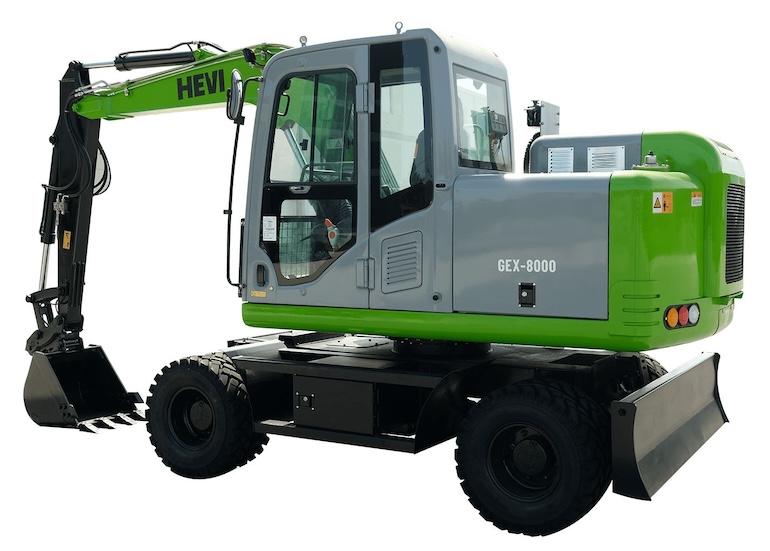

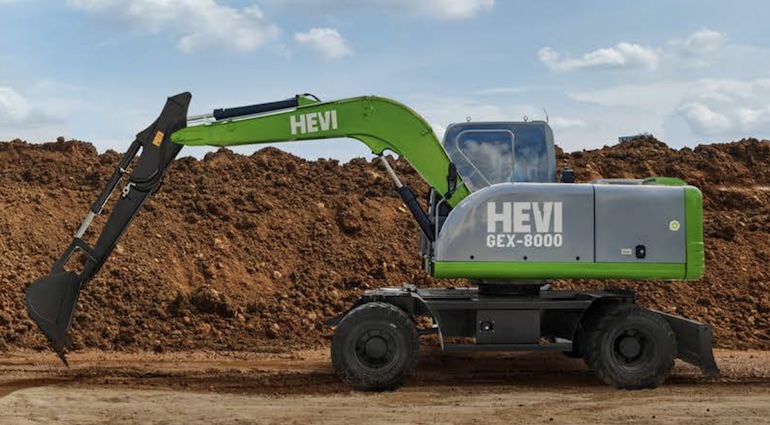

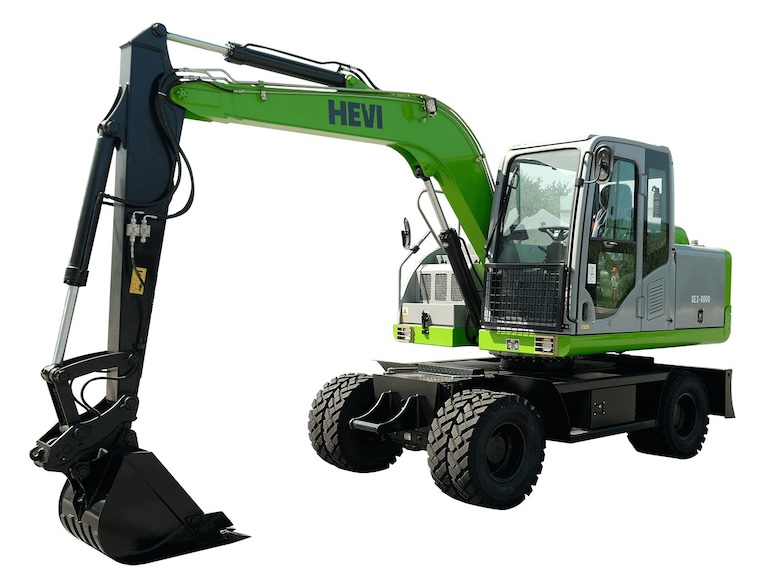

The Hevi GEX-8000 Electric Excavator is meticulously crafted to deliver unmatched precision and power in excavation tasks. With its robust dimensions and versatile boom/stick assembly, it offers exceptional maneuverability and reach, making it suitable for a wide range of applications. Powered by a high-capacity Lithium Ferrophosphate (LFP) battery, the GEX-8000 ensures clean, emission-free operation without compromising on performance. This advanced battery technology provides sustained power output, allowing for extended operational periods while reducing carbon footprint and environmental impact.
Equipped with innovative features such as standard steering with rotational house capabilities, the GEX-8000 offers unparalleled control and agility on the job site. Its powerful hydraulic system delivers optimal performance, ensuring efficient operation and superior digging force in various conditions. Despite its formidable capabilities, the Hevi GEX-8000 maintains a quiet operating environment, minimizing noise emissions both in the cab and at a distance. This enhances operator comfort and reduces disruption to surrounding areas, making it ideal for urban and residential projects.
With its combination of precision engineering, eco-friendly technology, and advanced features, the Hevi GEX-8000 Electric Excavator sets a new standard for excellence in the industry. Whether on construction sites, infrastructure projects, or urban redevelopment initiatives, the GEX-8000 stands ready to tackle the most demanding excavation tasks with ease and efficiency.
Hevi GEX-8000 Electric Excavator Dimensions
The GEX-8000 boasts impressive dimensions, with a maximum cutting height of 19 feet 6 inches and a digging reach of up to 19 feet 7 inches. Its sturdy construction and well-proportioned frame contribute to its stability and maneuverability on various terrains.
| Specification | |
|---|---|
| Maximum Cutting Height | 19′ 6″ (5,950 mm) |
| Maximum Dump Height | 15′ (4,590 mm) |
| Maximum Digging Depth | 7′ 7″ (2,300 mm) |
| Maximum Vertical Wall Digging Depth | 5′ 2″ (1,570 mm) |
| Maximum Digging Reach at Ground Level | 19′ (5,790 mm) |
| Maximum Digging Reach | 19′ 7″ (5,980 mm) |
| Highest Position Leveler Blade | 1′ 2″ (365 mm) |
| Lowest Position Leveler Blade | 3″ (66 mm) |
| Wheel Base | 8′ (2,430 mm) |
| Track Length | 10′ 9″ (3,286 mm) |
| Dozer Blade, Maximum Reach at Ground Level | 5′ 8″ (1,736 mm) |
| Overall Width | 6′ 11″ (2,100 mm) |
| Overall Length | 20′ (6,085 mm) |
| Height of Counterweight | 6′ 9″ (2,065 mm) |
| Minimum Ground Clearance | 9″ (225 mm) |
| Dozer Blade Height | 1′ 8″ (500 mm) |
| Tires Width | 1′ 7″ (490 mm) |
| Ground Clearance to Superstructure | 3′ 7″ (1,090 mm) |
| Front Slew Radius | 8′ 7″ (2,605 mm) |
| Overall Height Cab | 9′ 7″ (2,910 mm) |
| Width of House | 6′ 9″ (2,050 mm) |
| Tail Slew Radius | 7′ 1″ (2,160 mm) |
| Angle of Approach | 5° |
Hevi GEX-8000 Battery Specifications
Powered by a high-capacity Lithium Ferrophosphate (LFP) battery, the GEX-8000 ensures sustained performance and reliability. With a capacity of 228 Ah and 141 kWh, it delivers consistent power output for extended operational periods. The advanced cooling and heating systems maintain optimal battery temperature, enhancing longevity and efficiency.
| Specification | |
|---|---|
| Battery Type | Lithium Ferrophosphate (LFP) |
| Battery Capacity | 228 Ah (141 kWh) |
| Battery Voltage | 618.24 V |
| Energy Consumption (Underload) | 12 kW/h |
| Battery Operating Temperature | -31-140 °F (-35-60 °C) |
| Battery Cooling Mode | Liquid Cooling |
| Battery Heating Mode | PTC Heating |
| Service Life Cycles | 4,000; Capacity Fade <30% |
| Charging Port | J1772 / CCS1 |
| Auxiliary Battery Type | Lead-Acid |
| Auxiliary Battery Capacity | 36 Ah |
| Auxiliary Battery Voltage | 24 V |
| Charging Times 220V | 14 hrs (approx.) |
| Charging Times 480V | 5 hrs (approx.) |
| Charging Times DCFC | <1.5 hrs (approx.) |
Hevi GEX-8000 Excavator Boom/Stick Specs
Equipped with a robust boom and stick assembly, the GEX-8000 offers versatility and precision in excavation tasks. Its bucket capacity of 0.34 cubic yards allows for efficient material handling, while the 360-degree boom swing angle facilitates seamless maneuvering in tight spaces.
| Specification | |
|---|---|
| Operating Weight | 18,739 lb. (8,500 kg) |
| Bucket Capacity | 0.34 yd³ (0.26 m³) |
| Overall Length | 20′ (6,085 mm) |
| Overall Width | 6′ 9″ (2,050 mm) |
| Overall Height (Bucket Lowered) | 9′ 7″ (2,910 mm) |
| Maximum Height (Bucket Raised) | 19′ 6″ (5,950 mm) |
| Dumping Height | 15′ (4,590 mm) |
| Boom Swing Angle | 360° |
| Wheel Base | 8′ (2,430 mm) |
| Maximum Gradeability | 70 % |
| Maximum Digging Force | 50 kN |
Hevi GEX-8000 Excavator Hydraulics
Featuring a powerful hydraulic system, the GEX-8000 delivers optimal performance in various operating conditions. With a working hydraulic pressure of 4,061 psi and an output volume of 42.3 gallons per minute, it ensures efficient operation and superior digging force, making light work of demanding tasks.
| Specification | |
|---|---|
| Working Oil Capacity | 52.8 gal (200 L) |
| Working Hydraulic Pressure | 4,061 psi (28 Mpa) |
| Working Hydraulic Output Volume | 42.3 gpm (160 Lpm) |
| Working Hydraulic Rated Power | 46.5 kW |
| Working Hydraulic Rated Torque | 222 Nm (164 ft-lb) |
| Rotating Speed | 2,000 r/min |
| Working Hydraulic Motor Type | Load Sensing System |
| Protection grade | IP67 |
Hevi GEX-8000 Driving Specifications
The GEX-8000 exhibits exceptional driving performance, with a forward speed of 12 mph and a reverse speed of 8 mph. Its standard steering system, combined with rotational house capabilities, enables smooth navigation and precise control, even in challenging environments.
| Specification | |
|---|---|
| Forward Speed | 12 mph (19.3 km/h) |
| Reverse Speed | 8 mph (12.8 km/h) |
| Steering Mode | Standard Steering + Rotational House |
| Motor Type | Permanent Magnet Synchronization |
| Rated Power | 60 kW |
| Rated Voltage | 380 V |
| Transmission Type | Hydraulic |
| Transmission Gear | 1 Forward 1 Reverse |
| Tire | 8.25-16-16PR |
| Brakes | Hydraulic Caliper Disc Brakes |
| Sound Level in Cab | 39.3 dBa |
| Sound Level 15ft away | 49.2 dBa |
| Four wheel drive | YES |
Despite its formidable capabilities, the GEX-8000 maintains a quiet operating environment, with sound levels of 39.3 dBa in the cab and 49.2 dBa at a distance of 15 feet. This low noise emission enhances operator comfort and minimizes disruption to surrounding areas, making it ideal for urban and residential projects.
In conclusion, the Hevi GEX-8000 Electric Excavator combines power, precision, and efficiency to tackle the most challenging excavation tasks with ease. Whether on construction sites or urban redevelopment projects, this versatile machine sets a new standard for performance and reliability in the industry.
